Operative technique for a combined transcaruncular-transconjunctival approach to double-walled orbital fractures

Transcaruncular access of the medial orbital wall

The procedure may begin with either the transcaruncular incision or the transconjunctival approach. For the purposes of this discussion, we will begin with a descriptor of transcaruncular access: A corneal shield lubricated with ophthalmic ointment is placed at the beginning of the case. Transcaruncular access is then initiated [Figure 1A]. The caruncle [Figure 1A, dashed arrow] is identified as a papular structure in the medial canthal region situated medial and anterior to the semilunar fold [Figure 1A, solid arrow]. Two 5-0 silk traction sutures are placed in the upper and lower lid tarsus to assist with exposure. The caruncle is retracted medially with forceps, and an incision is then made between the caruncle and the semilunar fold. The posterior lacrimal crest can then be palpated as a prominent bump in the medial orbital wall. A thin malleable retractor is placed posteriorly to this structure, and a Desmarres retractor can be placed medially to optimize visualization. Stevens tenotomy scissors are slid over the retractor and spreading dissection is performed in a plane above Horner’s muscle toward the posterior lacrimal wall [Figure 1B]. The periosteum is incised behind the posterior lacrimal crest, and subperiosteal dissection then allows visualization of the medial orbital wall [Figure 1C, solid arrow]. The globe can be gently retracted with the malleable [Figure 1C] and further subperiosteal dissection is performed with a Cottle or Freer elevator to visualize the fracture.

Figure 1. Demonstration of combined transcaruncular-transconjunctival approach in the right orbit of the cadaver. (A) An incision is made between the caruncle (dashed arrow) and semilunar fold (solid arrow) as each structure is retracted. (B) Spreading dissection is performed towards the posterior lacrimal wall. (C) The globe is retracted laterally and subperiosteal dissection behind the lacrimal bone exposes the medial orbital wall (arrow). (D) A medialized lateral canthotomy is performed by incising the inferior canthal crus. (E) The planned transconjunctival incision is marked along the lower lid (dashed line). (F) The inferior orbital rim (arrow) is exposed following transconjunctival incision and retroseptal dissection. (G) The inferior oblique muscle (arrow) is identified as the globe retracts superiorly. (H) A titanium reinforced porous polyethylene implant is positioned through the combined transcaruncular-transconjunctival incision. (Re-published from Nguyen et al. with permission from SAGE Publishing^[8]).

Lateral canthotomy and transconjunctival access of the orbital floor

After accessing the medial wall, attention is then turned towards transconjunctival access to the floor. A lateral canthotomy is made through the lateral aspect of the lower lid, 1 to 2 mm medial to the palpebral fissure, using iris scissors directed in an inferolateral direction [Figure 1D]. While transection of the lateral canthal tendon through the palpebral fissure may establish access to the floor and lateral orbit, this approach is also noted to lead to unpredictable healing and potential round eye deformity. A medialized canthotomy in which only the inferior crus is severed provides excellent exposure to the orbital floor and lateral orbital wall while minimizing possible functional and aesthetic complications. Lateral canthotomy is not always necessary for this procedure; however, this maneuver is frequently useful to optimize the insertion of a large orbital implant. The inferior lid is retracted and the planned transconjunctival incision is marked [Figure 1E, dotted line]. Any prominent vessels of the arterial arcade of the lower eyelid traversing the incision line can be cauterized with pinpoint electrocautery. With a Desmarres retractor placed on the lower lid and a malleable retractor retracting the globe, a transconjunctival incision is made using pinpoint electrocautery [Figure 1E]. Cotton-tipped applicators are then used to dissect bluntly in a retroseptal plane to the orbital rim [Figure 1F, solid arrow]. A preseptal dissection can instead be performed based on surgeon preference in lieu of retroseptal access. The periosteum at the orbital rim is then incised with cautery, providing excellent visualization of the orbital floor.

Once both accesses have been achieved, the incision lines are made to connect between the inferior margin of the transcaruncular approach and the medial edge of the transconjunctival incision. This provides a safe dissection plane posterior to the medial canthus and the lacrimal elements. Dissection at this junction is hampered by the presence of the origin of the inferior oblique muscle, which is discussed below. The presence of this muscle will need to be addressed as it may serve as an obstruction to the reconstruction of the fractured orbit. As noted at the beginning of this section, either transconjunctival or transcaruncular access may be performed first, according to surgeon preference.

Implant placement and key anatomic elements

The orbital floor and medial wall are dissected in a subperiosteal plane using a Cottle periosteal elevator. During dissection of the periorbita and implant placement, special attention must be paid to the inferior oblique muscle, which originates along the inferomedial aspect of the orbital rim and extends obliquely towards the globe [Figure 1G, solid arrow]. Exceptional care must be taken to avoid injury to this structure, which could result in cyclotorsional displacement and functional strabismus. When this structure interferes with implant placement, two separate, smaller implants may instead be attempted for maneuvering and positioning around the muscle, given the presence of a stabilizing internal orbital buttress (IOB). The IOB is a key anatomic landmark of the posteromedial orbit located at the union of the medial wall of the maxillary sinus, the medial wall of the orbit, and the orbital floor [Figure 2, green arrow]^[9,10]. The articulation of these three boundaries forms a bony septum known as the IOB. When present, the orbital floor and medial wall may be treated as two separate fractures rather than as a single entity. In doing so, two individual prostheses for the floor and medial wall may be stabilized to this segment. This avoids the need to disturb the inferior oblique muscle, allowing the surgeon to operate on either side of the oblique during implant insertion. In instances of severe trauma, however, the IOB may collapse, and placement of a single, larger implant is necessary to span the entire fracture area [Figure 2, red arrow].

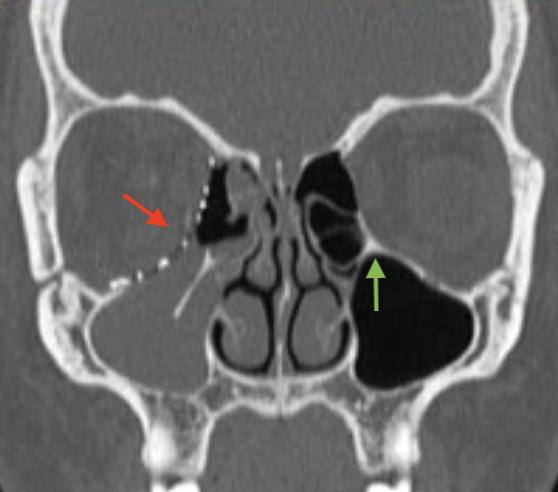

Figure 2. A 31-year-old woman sustained fractures of the right orbital floor and medial wall. Postoperative CT scan demonstrating the absence of internal orbital buttress requiring placement of a single, large implant (red arrow) covering both fractured walls, and intact buttress on contralateral unfractured side (green arrow). (Re-published from Nguyen et al. with permission from SAGE Publishing^[8]).

If an IOB is no longer intact, the obstructing inferior oblique must be mobilized to facilitate implant placement. When possible, this muscle is elevated with the periorbita [Figure 3A]. However, it has been the senior author’s experience that the muscle origin is not tightly adherent to the periosteum in all circumstances. In these instances, the inferior oblique muscle may be tagged for later reapproximation with 5-0 Vicryl (Ethicon, Somerville, NJ) sutures and amputated close to its origin [Figure 3B]. At the time of closure, the tagging sutures of the muscle belly and amputated stump are sutured together to reapproximate the muscle.

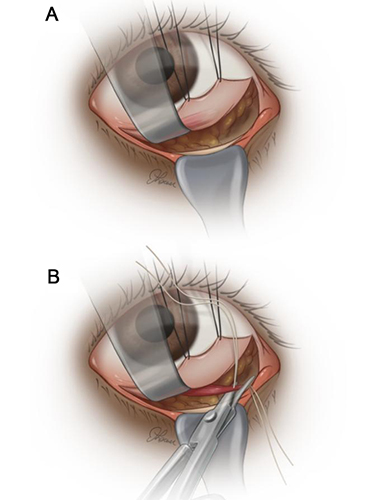

Figure 3. Surgical illustrations of (A) subperiosteal elevation of inferior oblique muscle with periorbita; and (B) division and tagging of muscle with suture.

Herniated orbital contents are dissected from the maxillary and ethmoid sinuses and returned into the orbit. Wide dissection must be performed to clearly expose the fractures along each of the walls of injury. Establishment of the fracture dimensions should be determined by CT imaging, and these measures are confirmed intraoperatively with a ruler. An appropriately sized implant is chosen for reconstruction. A number of options exist for the reconstruction of complex double-walled orbital fractures. These include traditional flat titanium mash, 3-dimensional anatomic implants, titanium impregnated porous polyethylene implants [e.g., Medpor Titan (Stryker, Kalamazoo, MI); Synpor (DePuy Synthes, West Chester, PA)] or custom orbital reconstruction plates. Once the material is chosen, the implant may be trimmed to the appropriate size and bent or adjusted to simulate the curve between the orbital floor and medial orbit. Autologous implants have been previously described; however, alloplastic materials are favored due to their ready availability and capacity for customization into 3-dimensional shapes. Similarly, while simple porous polyethylene implants remain an option, it is the authors’ opinion that this material is less suited for the reconstruction of complex three-dimensional shapes.

Once the appropriate implant is chosen and prepared, it must be carefully inserted into the large orbital defect, with the margins of the implant resting gently against each of the walls of the fracture. This can be an extremely challenging task, as the orbital contents may be edematous from the recent trauma, creating significant resistance to retraction of these contents back into the globe. The insertion of the implant itself may also be made difficult by the presence of any sharp edges, which may catch onto herniated orbital contents, restricting smooth insertion and making precise placement of the prosthesis difficult. In the senior author’s experience, this occurs most often with titanium-based implants. To facilitate implant placement in these circumstances, a clear nylon sheet [e.g., SupraFOIL (S. Jackson, Inc., Alexandria, VA)] may initially be placed to uphold orbital contents and serve as a barrier as the implant is placed inferiorly to cover the fractured area [Figure 4]. The nylon sheet is subsequently removed following the insertion of the prosthesis.

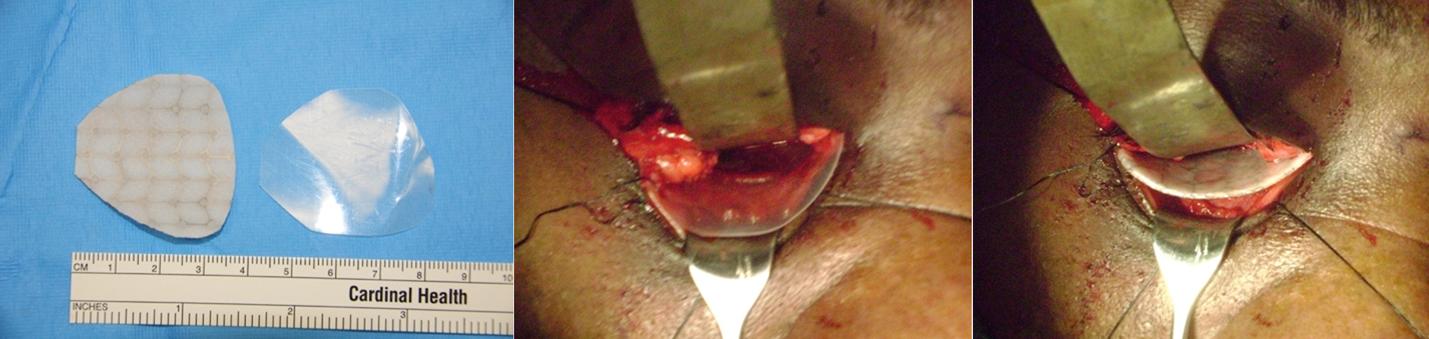

Figure 4. (Left) Titanium impregnated porous polyethylene implant and clear barrier sheet nylon sheet. (Center) Insertion of clear nylon sheet as a barrier to orbital contents prior to prosthesis placement. (Right) Implant placement with nylon sheet removed.

Positioning is visually confirmed so that the implant appropriately rests on stable bony ledges on all sides [Figure 1H]. Some surgeons have advocated intraoperative CT scanning at this time to confirm the anatomic nature of the repair^[11]. The implant is secured to the orbital rim with a single, self-drilling screw. The corneal shield is removed and a forced duction test is performed. After reassurance that there is no orbital entrapment, the corneal shield is replaced. The operative field is irrigated, and meticulous hemostasis is achieved.

Closure

Closure of the transconjunctival, transcaruncular, and lateral canthotomy incisions is performed with buried 6-0 plain gut sutures. The caruncle and conjunctiva are similarly closed with 6-0 plain gut sutures in a buried, interrupted fashion. The lower lid tarsus is reapproximated with a single 5-0 Vicryl suture. This is left loose and is tightened after the conjunctival incision is closed. Upon doing so, the gray line is reapproximated and the cutaneous lower eyelid is repaired, again with plain gut suture. All traction sutures in the caruncle and septum are removed. As necessary, a 5-0 silk suture in the lower lid tarsus may be taped to the forehead and used as a Frost stitch, especially when chemosis is notable. Computed tomography (CT) images of a patient following repair are shown [Figure 5].

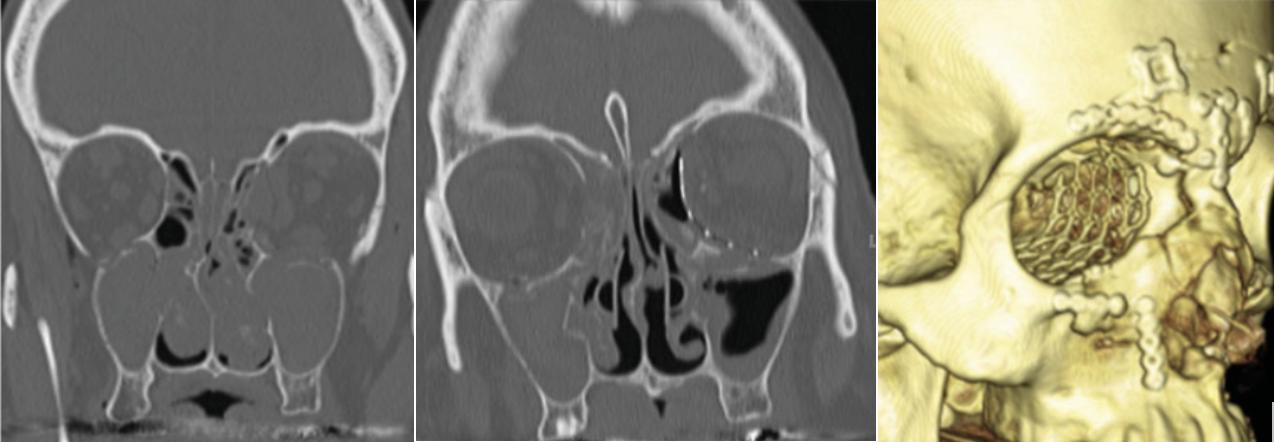

Figure 5. A 65-year-old woman presenting with panfacial fractures underwent a combined transcaruncular-transconjunctival repair of a double-walled orbital fracture. The left-sided floor and medial wall fracture area measured 9.3 cm². Preoperative scan (left), postoperative scan (middle), and postoperative 3D rendering are shown. (Re-published from Nguyen et al. with permission from SAGE Publishing^[8]).
