    Abstract

    Aim: The aims were: (1) to examine the clinical application of a geometric morphometric method (GMM) that quantifies the three-dimensional (3D) configuration of the facial soft tissues in patients with a repaired unilateral cleft lip and palate (UCLP); and (2) to determine the morphological characteristics that distinguish between non-cleft participants and patients with UCLP.

    Methods: 3D facial images at rest were recorded from Japanese patients with a repaired UCLP (Cleft group; n = 60) and healthy adults featuring a straight type facial profile with normal occlusion (Control group; n = 200) using 3D photogrammetric cameras. For each participant, wire mesh fitting was conducted based on the assignment of landmarks to each 3D facial image. This method generated landmark-based GMM models consisting of 6017 nodes on the fitted wire mesh. For each node, the mean and standard deviation were determined in the Control group and were used as the normative range of the faces. With this normative range, the Z-scores before and after surgery were evaluated for patients with UCLP who underwent orthognathic bimaxillary surgery. Further, the morphological characteristics of the Cleft group were evaluated using a principal component (PC) regression analysis that distinguished between two subject groups. In addition, K-means clustering analysis and MANOVA were used to examine the morphological variation of the Cleft group.

    Results: A patient with UCLP was evaluated with the system. After surgery, the normal area increased by 8%-20% on all axes, which means that the surgery was effective for normalizing the patient’s face. However, even after surgery, the protrusion of the lower lip and asymmetry remained. Nine PCs were extracted, and seven PCs were selected for the regression model to discriminate two subject groups, e.g., midfacial retrusion, nasal bump, and chin protrusion. The MANOVA also revealed significant differences between both the Cleft and Control groups and the sex subgroups, and the effects of cleft on the facial morphology was found to be related to sex (all, P < 0.01).

    Conclusion: The clinical application of GMM was confirmed to be effective. GMM detected variations of the Cleft group and morphological characteristics. GMM is considered to be a powerful tool to quantitatively evaluate faces in clinics.

    Introduction

    The extent of recognition of an individual’s own face by others exerts a great sociopsychological influence on that individual’s sense of acceptance by his or her community. It is known that there are several facial deformities associated with congenital cleft lip after primary lip revision surgery. It is thus crucial for patients with cleft lip and/or palate to normalize their facial morphology with primary repair and any subsequent revision surgery. The extent and type of these facial deformities varies among patients due to the extent of the original abnormality and any prior surgeries performed[1-3]. Several experts have recommended using subjective checklists to provide assessments of the extent and type of facial abnormalities[4,5]; however, this could result in bias. The development of a systematic method for the evaluation and classification of the morphological traits of the cleft facial shape could greatly facilitate the surgical/orthodontic diagnosis and the design of treatment plans for the optimization of treatment outcomes.

    The analysis of the form of the nose and lip is important for revision surgery and many attempts have been made to establish systematic analytical methods. Conventional photographs have been employed in some studies[3,6,7]. Several three-dimensional (3D) analysis techniques, including direct anthropometry of the human face[8,9], stereophotogrammetry[10,11], laser scanning, gypsum cast[12-14], and computer tomography[15], have been employed to assess the facial morphology of patients with cleft lip. Because these analyses are primarily conducted with the use of linear and/or angular measurements between/among landmarks, the detailed morphological characteristics of the entire facial surface forms are not considered. There have also been a few attempts to extract detailed morphological characteristics of the entire facial surface forms using the slice lines. In these studies, traced nasal lines in an axial view were assessed using a curve fitting method that provides the extent of asymmetry[12], and an automatically extracted nostril shape was assessed[16]. These studies succeeded in describing the morphological characteristics of the nasal surface; they mainly attempted to describe the nasal forms in an axial view and the nostril shapes before and after surgery. A 3D quantitative analysis of the lip was also reported, in which the morphological traits of the lip surfaces were measured from the frontal and lateral views[17]. However, thus far, few studies have reported the 3D holistic analysis of the entire facial form from all three views (i.e., frontal, lateral, and axial views).

    With recent computation advances, landmark-based geometric morphometric methods (GMMs) have recently emerged that-together with conventional measurements in medicine-have revealed some statistical variation in the shape and size of target objects (phenotypic variation). In developmental biology, GMMs use homologous landmarks, which can be defined as precise locations on biological specimens that hold some functional, structural, developmental, or evolutionary significance, and which are directly comparable between specimens[18]. GMMs have four types of landmarks: Type I landmarks can be clearly defined on a structure (e.g., the corner of the mouth); Type II landmarks are more ambiguous and usually describe the maxima of curvature (e.g., nasal tip); Type III landmarks are geometric constructions generated from lines or Type I and/or II landmarks (e.g., midpoint of the right and left eyes); and semi-landmarks represent surfaces or curves between landmarks[18]. A key concept of GMM is based on the fact that morphology can be mapped systematically, often within a “morphospace”, with the use of these landmarks. Morphospaces are maps that show how shapes are defined by quantitative traits. GMMs rely on the superimposition of landmark coordinate data r to place individuals in a common morphospace.

    Recently, the clinical application of a GMM-a novel 3D quantitative analysis method-in the quantification and visualization of the 3D configuration of the facial soft tissues was reported[19]. 3D faces were fitted with mathematical wire meshes based on 26 landmarks, and the nodes of the fitted meshes were used as semi-landmarks. All faces were superimposed based on the landmarks and were statistically analyzed in the facial morphospace. The analysis included the average range of faces with regard to sex, age, and race, and the method compared a patient’s face with this normal range. This enabled us to understand the patient’s static facial form characteristics quantitatively and instantaneously. In their report, the applicability of the system to three cases, namely one case each of Class II malocclusion, Class III malocclusion, and jaw deviation, was reported; however, the applicability of this system to the cleft facial shape remains unclear.

    Thus, the objectives of this study were as follows: (1) to examine whether the previously published soft-tissue evaluation methods developed based on GMMs[19] could be applied to patients with a cleft lip before or after treatment; (2) to determine soft-tissue morphological characteristics that distinguish non-cleft participants from patients with a cleft lip; and (3) to examine the variations of cleft facial shapes. Furthermore, we discuss the clinical application of the GMM based on the results of Objectives (1)-(3).

    Methods

    The study was approved by the ethics committee for medical research at Osaka University Dental Hospital (ID: H25-E37-1). An informed consent to participate in the study was obtained from all participants.

    Systems

    A system for evaluating facial morphology that was developed in a previous study[19] was employed in the present study. The overview of the system is shown in Figure 1. The system was divided into three parts: (1) mesh fitting on the 3D facial picture; (2) development of the normative ranges of faces; and (3) evaluation of the new face with the normative face. In the present study, the normative range of the face was defined as the average and ±1 standard deviation (±1 SD), and the patient data were compared to the normative range of faces. To develop the normative ranges, 200 participants (female, n = 100; male, n = 100) between 18 and 35 years of age were recruited from the students and faculty of Osaka University in Japan. For the detailed inclusion criteria, please see the previous study[19]. Then, the normative faces, including the mean coordinate values and the standard deviation for each sex group, were used to evaluate new patients. The equations were as follows:

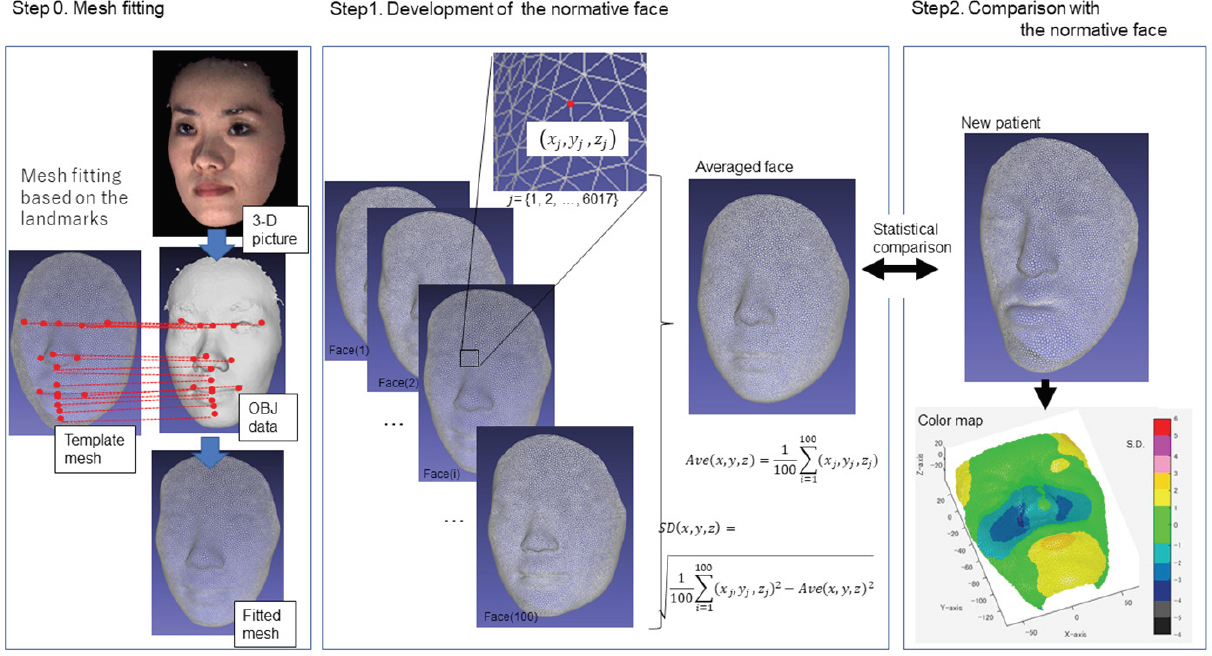

    Figure 1. A schematic illustration of the wire mesh fitting (Step 0), the generation of averaged faces (Step 1), and their statistical analysis (Step 2)

    where p(x), p(y), and p(z) indicate the coordinate values of each image of the sample patients; m(x), m(y), and m(z) indicate the average coordinate values of the control group; and s(x), s(y), and s(z) indicate the standard deviation of the coordinate values of the control group in the x-, y-, and z-directions, respectively. To visualize the results, the Z-scores were visualized as color values. For a detailed description, please see the previous study[19].

    Samples

    Application of the system to patients with unilateral cleft lip and palate

    To demonstrate the applicability of the system, one Japanese patient with unilateral cleft lip and palate (UCLP) (example case) was selected from the patients who visited our department to undergo orthognathic bimaxillary surgery (Le Fort I maxillary surgery and bilateral sagittal split osteotomy, Figure 2). The details of the treatment have been described elsewhere[20].

    Figure 2. Cephalogram and 3D facial images of a patient with cleft lip and palate: cephalogram (A); 3D image pre-treatment (B); and 3D image post-treatment (C). These images were used for applicability of the system proposed in the previous study[19]

    Morphological characteristics of the faces of patients with UCLP

    Japanese patients with a repaired UCLP (Cleft group, n = 60; mean age, 22.0 ± 5.0 years; male, n = 36; female, n = 24) and healthy adults with a straight-type facial profile with normal occlusion (Control group: n = 200; mean age, 25.4 ± 5.3 years; male, n = 100; female, n = 100) were enrolled in the present study. The Control group samples were the same as those used in the previous study[21]. The inclusion criteria for the Cleft group were as follows: UCLP, patients who visited the orthodontic department, Osaka University Dental Hospital, during 2011-2015; age 15-37 years; positive overjet (i.e., most patients were in the post-treatment “retention” period); no facial paralysis; body mass index, 18.50-24.99; and no maxillofacial plastic surgery in the past six months. A written informed consent form was distributed to and signed by all participants.

    Data acquisition

    The subjects were asked to sit on a fixed chair with a natural head position without head support. Facial images at rest were recorded once with a 3D image capturing device (3-DMDcranial System, 3-DMD, Atlanta, GA, USA). This data acquisition was conducted once for each patient. For an example case to show the pre- and post-treatment changes, 3D images were acquired three months before and six months after treatment.

    Data processing

    Landmark identification

    Each 3D facial image was displayed on a monitor, and the positions of 18 landmarks [nasion, pronasale, subnasale, labiale superious, stomion, labiale inferious, submentale, pogonion, porion (right and left), exocanthion (right and left), endocanthion (right and left), alar curvature (right and left), and cheilion (right and left)[8]] were identified and digitized using a commercial software program (Face Rugle, Medic Engineering Co., Kyoto, Japan). Facial images were standardized with a common coordinate system [Figure 3][21].

    Figure 3. The coordinate system[19]. The 3D coordinate system. The nasion (N) was defined as the origin (O). The sagittal plane was defined as the plane passing through the origin and perpendicular to the line through the midpoint of the right exocanthion (Ex) and endocanthion (En) and the midpoint of the left Ex and En. The axial plane was defined as the plane passing through the origin and parallel to the line connecting the porion and the geometric center (g) of the porion (Po), subnasale (Sn), and Ex on the image projected onto the sagittal reference plane. The coronal plane was defined as a plane passing through the origin and perpendicular to both the axial and sagittal planes (cited from Tanikawa et al.[21]). Images of the participants with a right unilateral cleft lip were “mirrored” to left side to simulate a left unilateral cleft lip

    Wire mesh fitting

    For each participant, landmark-based GMM analysis[22] was performed using HBM software (National Institute of Advanced Industrial Science and Technology, Japan). This analysis generated a fitted mesh consisting of a set of 6017 points as nodes. The arithmetic means m(x), m(y), and m(z) and standard deviations s(x), s(y), and s(z) of the points were computed, and m(x) ± s(x), m(y) ± s(y), and m(z) ± s(z) were used as the normative range for each point in the X-, Y-, and Z-directions, respectively.

    Quantitative facial evaluation before and after treatment

    For the example case, the system was applied to exemplify the system results. Surface areas showing -1 SD < Z-score < 1 SD were defined as the normal area. The percentages of the surface before and after treatment were evaluated in each axis and presented as radar charts.

    Morphological differences between Cleft and Control groups

    For the Cleft and Control groups, to determine morphological characteristics of the facial soft tissue surface, the coordinate values of each node of the wire mesh on the facial surface on the x, y, and z axes were statistically analyzed. A two-sample t-test was performed to compare each axis in the two subject groups. To visualize the differences between the two subject groups, the results were represented as a color map showing the P-values for the comparison between the two subject groups (hereafter referred to as the significance probability map) and a color map representing the differences between two subject groups (hereafter referred to as the distance map)[21,22]. P values of < 0.05 were considered to indicate statistical significance.

    Morphological variation of the Cleft group

    To examine the variance in each group, each sex, and their interactions, the following two analyses were also conducted. We first performed a principal component analysis for the 6017 coordinates of each point on the facial surface in the x, y, and z axes to reduce dimensionality. Significant principal components (PCs) were determined by a scree plot analysis (90% was used as the cut off value). Significant PCs were entered into a regression model that decimated the Control and Cleft groups (P < 0.01). PCs were also entered into a MANOVA to test for significance of factors (i.e., cleft/non-cleft and sex). Then, to examine the patterns of the face and variation of the Cleft group, the patients in the Cleft group were categorized based on the similarities in the morphospace constructed above PCs using a clustering method (k-means and Elbow method).

    Results

    Quantitative facial evaluation before and after treatment

    Figure 4 shows the results of the application of the system to a patient with UCLP before and after treatment. The percentage of the normal area (-1 SD < Z-score < 1 SD) on each axis is shown in Figure 5 for each facial region before and after treatment. In total, the percentage of the normal area was increased from 20% to 40% on the x-axis (transverse direction); from 52% to 59% on the y-axis (vertical direction); and from 41% to 59% on the z-axis (antero-posterior direction). In detail, the figures for the x-axis show that before surgery there was greater asymmetry in the cheeks, the nose, nasolabial region, upper lip, lower lip, and chin. After surgery, the asymmetry in the upper and lower lip vermilion (the normal area changed from 19% to 84% and from 20% to 100%, respectively; Figure 5, left) and the right cheek improved remarkably (from 20% to 60%); however, the nose and nasolabial area and left cheek showed deviation to the right (x-axis), which is clearly observed in Figure 6 showing the axial view. In the z-axis, the figures also show that, before surgery, the patient had a retruded area corresponding the cleft scar (-1 SD) and a protruded chin (+1 to +2 SD). After surgery, the retrusion of the chin (normal area was changed from 18% to 98%; Figure 5, right) and lower lip improved remarkably, yet maintained a mean of -1 SD of the normative face for the lower lip (z-axis). As for the vertical direction, the upper lip vermillion was displaced downward (y-axis) into the normative range after surgery (from 90% to 100%; Figure 5, middle), while the greater facial height remained after surgery (from 20% to 20%; Figure 5, middle).

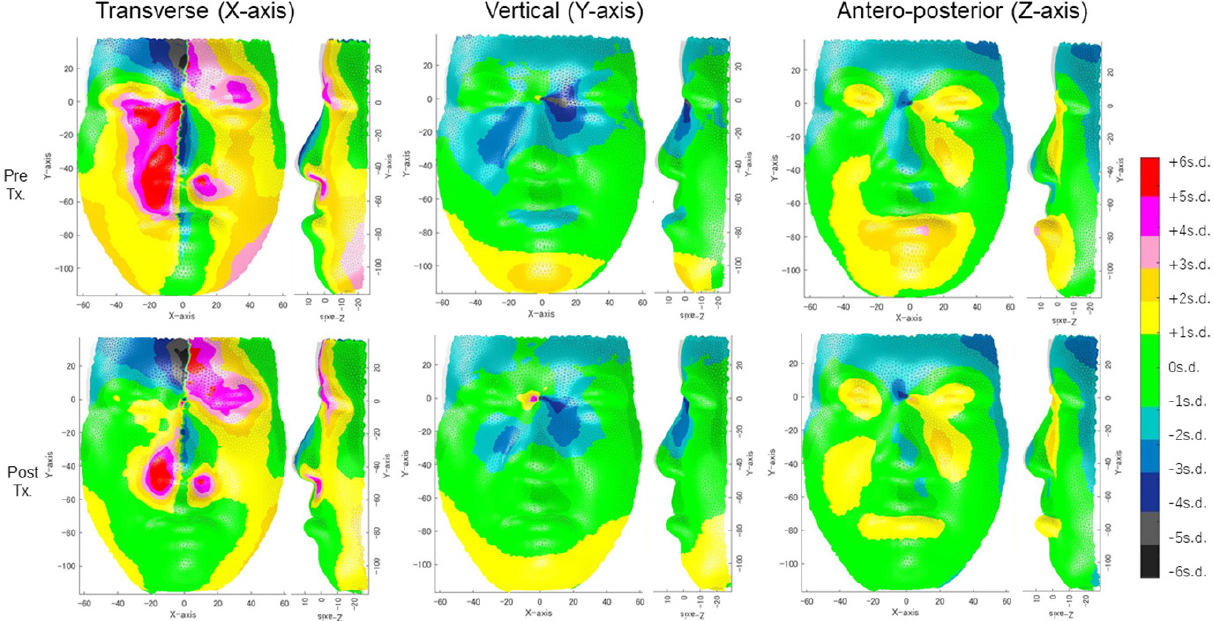

    Figure 4. Verification of the system using a cleft case. Grey profile indicates an average face: (top) pre-surgery; and (bottom) post-surgery. (left) The standardized X-values of the 3D face when compared with the normative mean (transverse direction). Red, pink, light yellow, and deep yellow represent the point clouds located outwards when compared with the normative mean; light blue, deep blue, grey, and black indicate the points located inwards (close to the medial line). Green represents the range within ±1 SD. The left column indicates the standardized Z-value (transverse direction). Before treatment, the right nasal alar and nasal tip were deviated to the right side by more than 6 SD. After treatment, the area showing more than 1 SD was decreased; however, the right nasal alar was still deviated by 6 SD (for the axial view, please see Figure 6). (middle) The standardized Y-value (vertical direction). Red, pink, light yellow, and deep yellow indicate the corresponding point clouds located inferiorly, whereas light blue, deep blue, grey, and black indicate the points located superiorly when compared with the normative mean. In this patient, before treatment, the lower lip was located superiorly by 1 SD, and the chin was located inferiorly by more than 2 SD and showed greater facial height. After treatment, the lower lip was located within the normal range, indicating that the lower lip had moved downwards after maxillary advancement and mandibular set-back movement due to the surgery. (right) The standardized Z-value (antero-posterior direction). Red, pink, light yellow, and deep yellow indicate the corresponding point clouds located anteriorly, whereas light blue, deep blue, grey, and black indicate the points that were located posteriorly when they were compared to the normative mean. In this patient, before treatment, the nasal dorsum and left upper lip (repaired cleft site) retruded by more than 1 SD, while the chin protruded by more than 3 SD. After treatment, the chin showed normal antero-posterior position while the lower lip showed slight retrusion by more than 1 SD. The area of the retrusion in the nasal dorsum and upper lip was also decreased

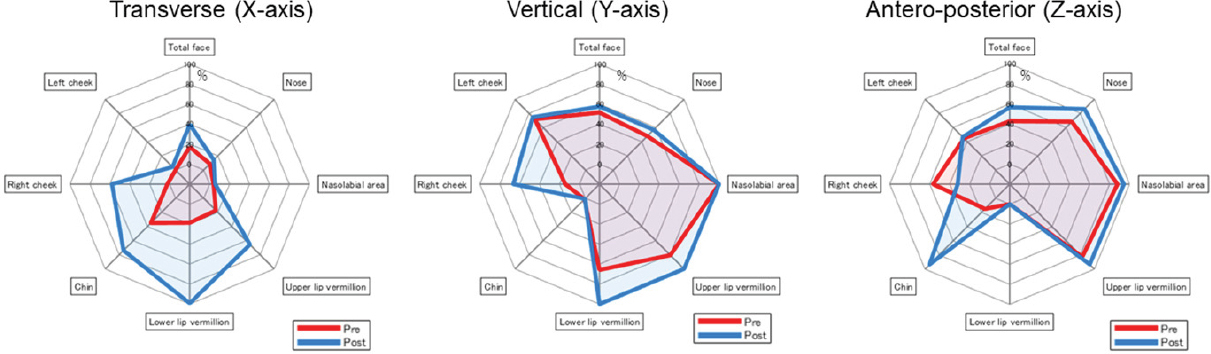

    Figure 5. Radar chart of the normal area for the example case with unilateral cleft lip and palate [Figure 2]. Surface areas showing -1 SD < Z-score < 1 SD were defined as the normal area. The percentage of the surface before (red) and after treatment (blue) was evaluated on: x-axis (left); y-axis (middle); and z-axis (right)

    Figure 6. Axial view of the standardized X-values of the 3D nasal dorsum in comparison to the normative mean (transverse direction): (top) pre-surgery; and (bottom) post-surgery. Grey indicates the averaged face of the Control group (female; n = 100). Red, pink, light yellow, and deep yellow represent the point clouds located outwards when compared with the normative mean; light blue, deep blue, grey, and black indicate the points located inwards (close to the medial line). Green represents the range within ±1 SD. Before treatment, the right nasal base was deviated to the right side by more than 6 SD before and after treatment. The left nasal base was also deviated to the left side by more than 5 SD before and after treatment. These results indicate that the width of the nose was greater in comparison to the normative range, which was not corrected, even after bimaxillary surgery

    Morphological differences between the Cleft and Control groups

    Figures 7 and 8 show the average differences between the Control and Cleft groups and the significance probability map of the X-, Y-, and Z-values, respectively.

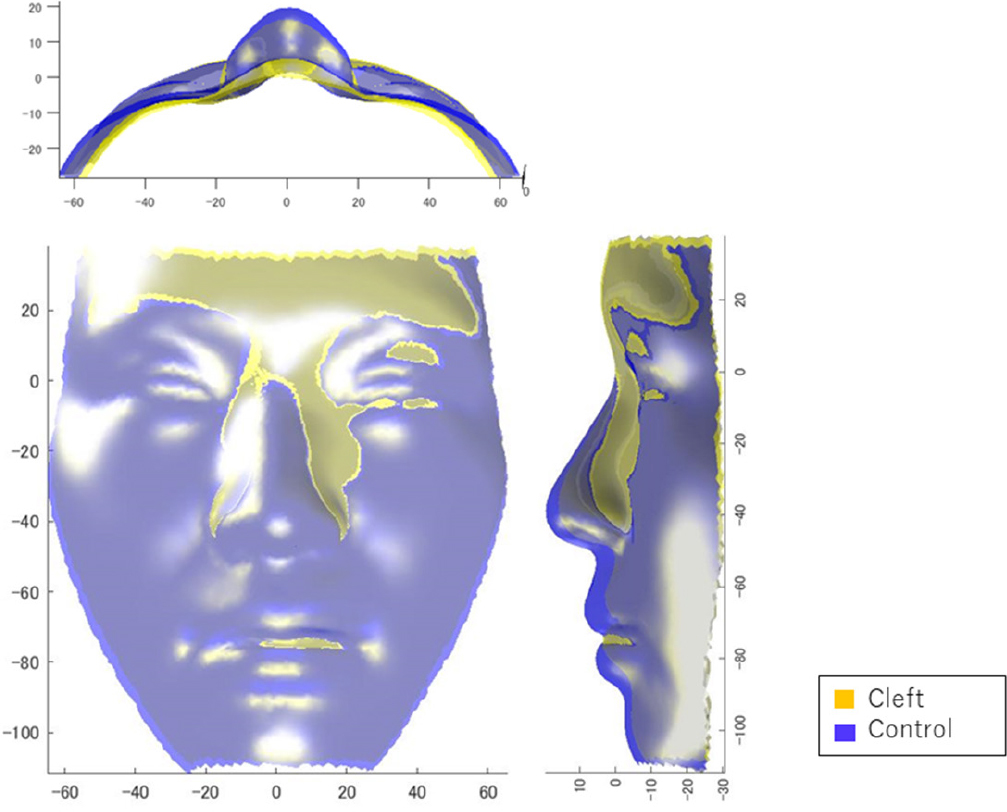

    Figure 7. Average shape of the Cleft group (yellow) and Control group (blue). The statistical significance of the differences is shown in Figure 8

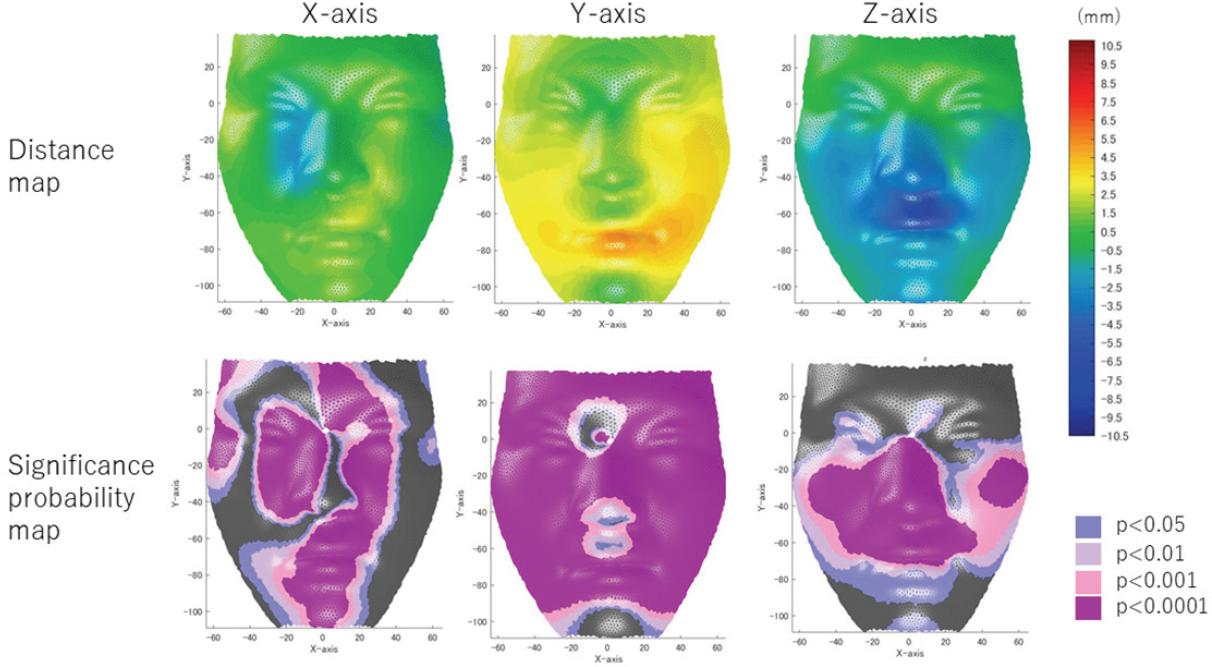

    Figure 8. Distance maps (top) and significance probability maps (bottom) of the difference in the coordinate values of nodes of the fitted mesh between the Control and Cleft groups in three directions [horizontal (left); vertical (middle); and anteroposterior (right) directions]. For the significance probability maps, the colors designate: blue, P ≤ 0.05; pale pink, P ≤ 0.01; dark pink, P ≤ 0.001; and purple, P ≤ 0.0001. For the distance maps, red indicates that the difference in the coordinate values between two subject groups (Cleft group - Control group) is a positive value, whereas blue indicates that the difference in the coordinate values between the two subject groups (Cleft group - Control group) was a negative value

    In the transverse direction (x-axis), the Cleft group showed that significant widening of the nasal wall at the non-cleft side, and the nasal dorsum and nasal alar of the non-cleft side was deviated to the non-cleft side. The upper lip, lower lip, and chin were significantly deviated to the cleft side (P ≤ 0.001). This indicates that the nasal tip was more rounded on the non-cleft side.

    In the vertical direction (y-axis), the position of the lower lip was significantly higher by approximately 4.5 mm in the Cleft group; however, the upper lip showed vertically normal position (P ≤ 0.001).

    In the antero-posterior direction (z-axis), the Cleft group showed significant retrusion of the nose, cheek, upper lip, and lower lip in comparison to the Control group at rest, by approximately 2.5-4.5 mm (P ≤ 0.001). On the other hand, the nasal alar at the cleft side showed no differences between two groups, indicating nasal alar at the cleft side was flattened.

    Morphological variation of the Cleft group

    The first nine significant PCs, which explained 90% of the sample’s variance, were determined to be significant by a scree plot analysis [Figures 9 and 10]. Based on the principal component regression analysis, PC3 (weight = 0.39), PC6 (0.36), PC4 (0.35), and PC2 (0.34) were extracted as important features to discriminate the Cleft and Control groups. Visualization of the between-group structure of the surface data revealed that PC3 was characterized by midfacial retrusion, well-developed nasal bone, and chin protrusion, and the Cleft group showed greater PC3 values (P < 0.001). PC6 was characterized by retrusion of the nose, upper lip, and lower lip, and the Cleft group showed a greater PC6 value (P < 0.000). PC4 was characterized by the retrusion of the cheek, eyes, and upper lip, and the Cleft group showed a greater PC4 value than the Control group. PC2 was characterized by a vertically short face. The Cleft group showed greater PC2 values, indicating that the patients in the Cleft group showed vertically shorter faces.

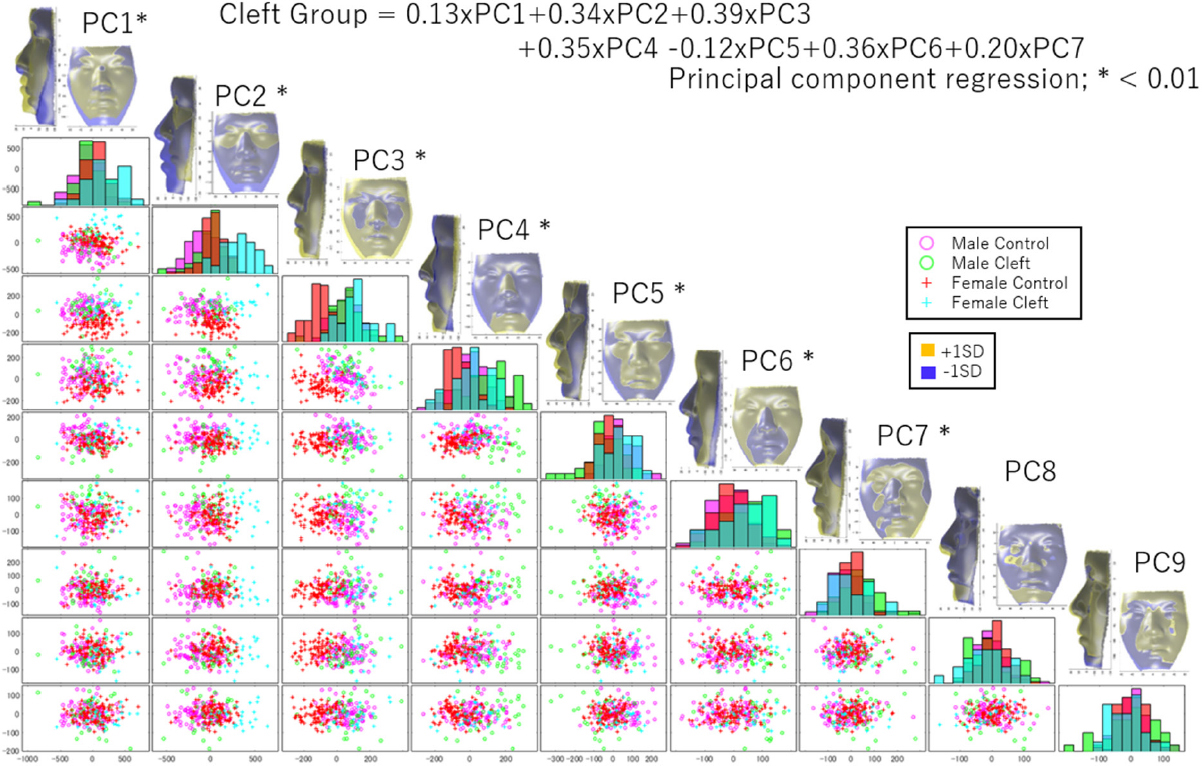

    Figure 9. A scatter plot matrix of the principal component (PC) scores in the Cleft and Control groups with a histogram in the diagonal cells. PCs 1-9 explain 90.5% of the shape variation across samples. Pink denotes facial configurations in the male Control group (male); green denotes those in the male Cleft group; red denotes those in the female Control group; and cyan denotes those in the female Cleft group. The PCs are defined as +1 SD (yellow) and -1 SD (blue) in the top column. For example, the top column indicates that a +1 SD value of PC2 represents a smaller facial height, which was represented as yellow (1 SD). The histogram shows that the bimodal distribution and female patients in the Cleft group (cyan) showed a greater PC2 value, suggesting that the female Cleft group had a smaller facial height

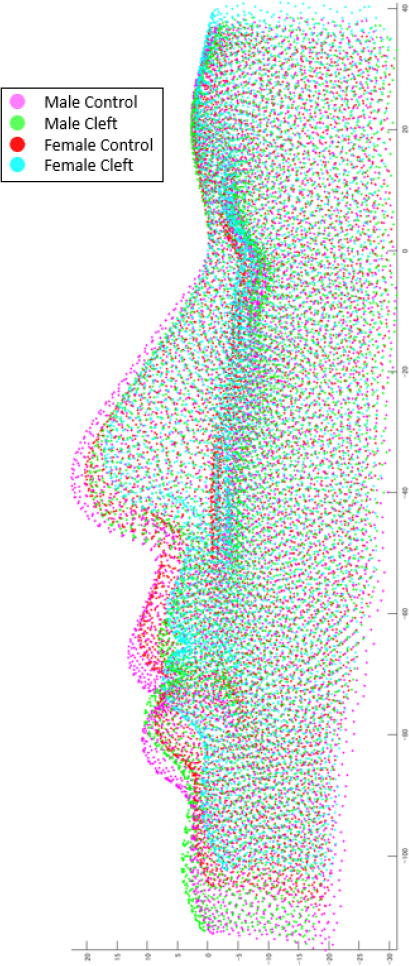

    Figure 10. Superimposition of the averaged coordinate values of a male Control group patient (pink), a male Cleft group patient (green), a female Control group patient (red), and a female Cleft group patient (cyan)

    MONOVA revealed that there were significant differences in the facial morphology in the Cleft and Control groups and sex the subgroups; and that the effects of cleft on the facial morphology were related to sex [P < 0.01, Table 1].

    Table 1

    The multifactor analysis of variance of the surface-based model

    DfPillaiApprox FNum DfDen DfPr(> F)
    Cleft10.8149108.75610247< 2.2e-16*
    Sex10.672750.76110247< 2.2e-16*
    Cleft: Sex10.19696.05610247< 3.13e-8*
    Residuals256

    With these nine PCs, the optimal number of clusters was mathematically created. The Elbow method showed that the samples could be classified into four typical patterns of the Cleft group (i.e., codes) [Figures 11 and 12]. Using color maps, the differences among the codes were described in detail: midface retrusion with short mandibular height (Code 1), midface retrusion combined with mandibular protrusion with well-developed nasal bone (Code 2), smaller nasal height and retruded cheeks (Code 3), and severe mandibular protrusion (Code 4).

    Figure 11. The results of the clustering method. Sixty samples were classified into four categories (codes). Figures 11 and 12 show that Code 1 represents patients having midface retrusion with short mandibular height; Code 2 represents those with midface retrusion combined with mandibular protrusion with well-developed nasal bone; Code 3 represents those with smaller nasal height, retruded cheeks, and asymmetric face; and Code 4 represents those with severe mandibular protrusion with asymmetric nose

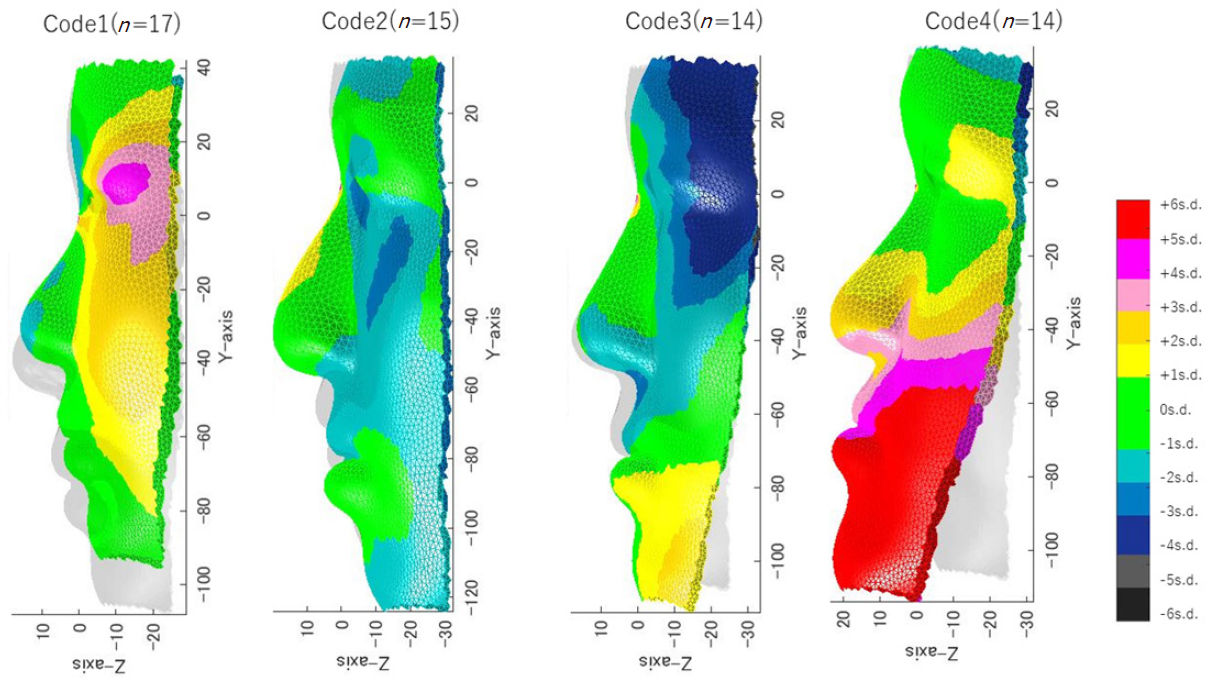

    Figure 12. Z-scores for the four categories (Code) of Cleft patients. The average shape was evaluated with the normative range[19]. Only the z-axis (anterior-posterior direction) results were exemplified. A grey profile indicates the average face. Z-score was calculated by the equation: Z-score (z) = (p(z) - m(z))/s (z), where p(z) indicates the averaged coordinate values of each code, m(z) indicates the average coordinate values of the control group, and s (z) indicates the standard deviation of the coordinate values of the control group in the z-direction. Please note that Code 1 shows that the anterior-posterior position of the upper and lower lips was within 1 SD. In Codes 2 and 3, the cheeks (midface) were remarkably retruded, while the anterior-posterior position of the upper lip was within 1 SD. Codes 4 shows greater protrusion of upper and lower lips

    Table 2 shows the demographic data of patients in each code. Code 1 consists of female patients, while Codes 2-4 consist of male patients. It was difficult to compare the surgical techniques or orthodontic treatment, because the sample size in each attribution was small.

    Table 2

    Demographic data in each code

    Code 1Code 2Code 3Code 4
    Patient number    17    15    14    14
    Sex
                  Male    1    13    11    11
    Female    16    2    3    3
    Cleft side
    Left    11    13    11    11
    Right    6    2    3    3
    Orthodontic treatment
    Camouflage    4    4    2    3
    Surgery    13    11    12    11
    Surgical technique for the palatoplasty
    Wardill-Kilner push-back    15    15    12    12
    Early two-stage with modified Furlow veloplasty    2    0    2    2
    Age (years old)
    Mean    20.6    21.9    22.2    23.5
    Standard deviation    3.2    2.3    7.5    5.6

    Discussion

    In the present research, we took advantage of GMM to propose a 3D quantitative analysis method for quantifying and visualizing the 3D configuration of the soft tissues of the face at rest. This method was applied to the face of one example patient with cleft lip and palate. GMM is considered to be effective for describing the changes from before to after surgery.

    A key concept of GMM is based on the fact that morphology can be mapped in the same dimensions as space, i.e., “the morphospace”, using these landmarks. Once 3D face images are converted to the morphospace, we can apply several statistical analyses to these face images. Examples of applications of GMM include the detection of facial sexual dimorphism[21], the examination of relationships between faces and genetics[23,24], the clinical diagnosis of dysmorphology[25], computer vision[26], and computer graphics[27]. In the present study, we used GMM for the quantitative evaluation of the treatment effects in patients with CLP and for the examination of the variation of the faces of patients with CLP based on a combination of principal component regression, MANOVA, and the clustering method (described below).

    Quantitative evaluation of the treatment effect in patients with UCLP

    GMM could be applied to detect the normal area before and after surgery. For the selected case, the percentage of the normal area was increased for all axes; however, several portions showing deformities remained, even after surgery. This was considered to be due to treatment limitations. Another possibility is that there were no measures to analyze the 3D face when we had performed surgery. The method introduced in the present article helps both patients and orthodontists share a mutual understanding of the soft tissue problems of patients with CLP. The patient’s facial soft tissues can be quantified and visualized three-dimensionally. This is useful for developing optimum treatment plans based on the evaluation of soft tissue.

    Examination of the variation of the faces of patients with CLP

    In the present study, we also clarified the morphological variations and characteristics of the face in patients with CLP using several statistical methods. This became possible because the faces could be converted to vectors of the same dimension (i.e., morphospace). Because the present study only included patients with positive overjet (i.e., most patients were in the post-treatment “retention” period), our study mainly detected antero-posterior facial deformities. If we examined patients before or during treatment, our method would be able to detect transverse facial deformities as well.

    Decreased nasal height and its related obscure nasal tip were identified as characteristics of the Cleft group in the present study. These results were compatible with those of previous reports[6,28-30]. The Cleft group was also characterized by downward rotation of the dorsum and a well-developed nasal bone (PC3 and Code 2). This can be explained by the assumption that the retruded midface and deficient maxilla of the nose in patients resulted in a significant nasal hump and downward rotation of the columella. This observation was well-matched with a previous analysis from the lateral view[15], which stated that this “beaky type nose” was often observed in adult patients with a cleft lip[15,29].

    A MANOVA also showed that the facial morphology was significantly different between the Cleft and Control groups and sex subgroups, and that the effects of a cleft on the facial morphology were related to sex. Figure 10 shows that patients in the Cleft group tended to have greater lower lip protrusion, and this was exaggerated in males. As our samples were from patients who underwent treatment in our hospital, this fact might be related to the treatment goal or treatment demands in males in our hospital.

    The 3D analysis of patients with CLP

    The reason 3D technology has not shown any further clinical progress thus far can be due to technical challenges in the analysis of 3D structures[19]. To solve the problem that 3D images containing an enormous quantity of information cannot be fully utilized in GMMs, this study introduced a new method to statistically analyze the entire 3D morphology and to simply visualize the results in patients with CLP. For the treatment of patients with CLP, a 3D quantitative analysis of the craniofacial structures is important for determining the treatment objectives and results.

    Limitations

    There are two major limitations in this study that could be addressed in future research. First, the sample size for the exemplification of the system application was limited. Secondly, the specific features and categories identified in this study might be different from those observed in other centers.

    Conclusion

    GMM was applied for quantifying and visualizing the 3D configuration of the soft tissues of the face. This method was effective in describing the changes from before to after surgery. GMM was also used to detect morphological variations of the face in patients with CLP. GMM will be a powerful tool to instantaneously and comprehensively evaluate faces in clinics.

    Declarations

    Authors’ contributions

    The author contributed solely to the article.

    Availability of data and materials

    Not applicable.

    Financial support and sponsorship

    This work was supported by JSPS KAKENHI (No. JP 19K10403). The funding body has no roles in the experiment design, collection, analysis and interpretation of data, and writing of the manuscript.

    Conflicts of interest

    The author declared that there are no conflicts of interest.

    Ethical approval and consent to participate

    Research involving human subjects, human material or human data was performed in accordance with the Declaration of Helsinki and approved by the ethics committee for medical research at Osaka University Dental Hospital (project ID: H25-E37-1). An informed consent to participate in the study was obtained from participants.

    Consent for publication

    A statement that a written informed consent for publication was obtained.

    Copyright

    © The Author(s) 2020.
